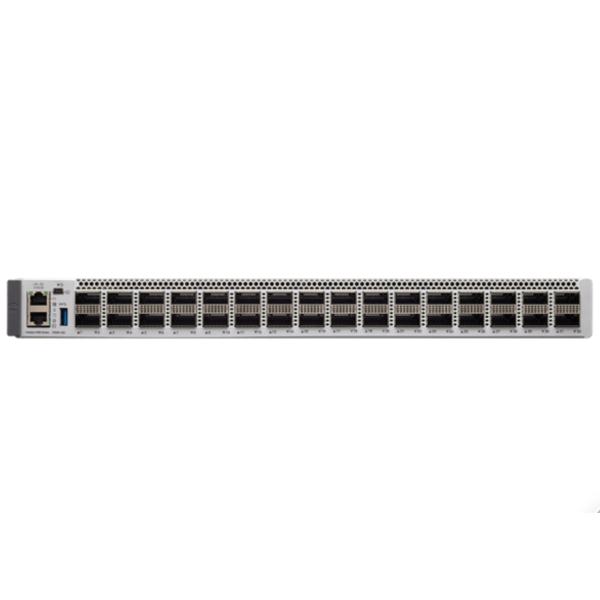

C9500-32C-A Cisco Switch Catalyst 9500 32-Port 100G Only Advantage

Brand Name : Cisco

Model Number : C9500-32C-A

Certification : CE

Place of Origin : USA

Model : C9500-32C-A

Switching capacity : Up to 6.4 Tbps

Forwarding rate : Up to 2 Bpps

DRAM : 16 GB

Flash : 16 GB

Dimensions (H x W x D) : 1.73 x 17.5 x 21.2 in

Condition : Brand New Sealed

Warranty : 1 year

Lead time : 2-3 days

Payment : T/T, Western Union, Paypal

Shipping : DHL, Fedex, UPS

Contact Now

C9500-32C-A Overview

C9500-32C-A is a Cisco Catalyst 9500 Series high performance 32-port 100G switch, NW Adv. License. The Cisco Catalyst 9500 Series Switches are the next generation of enterprise-class core and aggregation layer switches, supporting full programmability and serviceability. Based on an x86 CPU, the Catalyst 9500 Series is Cisco's lead purpose-built fixed core and aggregation enterprise switching platform, built for security, IoT, and cloud. The Catalyst 9500 Series is the industry's first purpose-built 40 Gigabit Ethernet line of switches targeted for the enterprise campus.

Product Details

Catalyst 9500 100/40-G 32-port switches: C9500-32C, C9500-32QC

· 32 ports of 100 G and 40 G with rich campus features

· Industry-first 100 G and 40 G enterprise-class switch

· High performance, QSFP+

· Secure segmentation with SD-Access

· MPLS L2/L3 VPNs, MVPN; flexible design templates

· Enhanced Limited Lifetime Warranty (E-LLW)

C9500-32C-A Cisco Switch Catalyst 9500 32-Port 100G Only AdvantageC9500-32C-A Cisco Switch Catalyst 9500 32-Port 100G Only Advantage

Compare to Similar Item

Product Code C9500-16X-A C9500-32C-A
Description Catalyst 9500 16-port 10Gig switch, with Network Advantage Cisco Catalyst 9500 Series high performance 32-port 100G switch, NW Adv. License
Switching capacity Up to 480 Gbps Up to 6.4 Tbps
Forwarding rate Up to 360 Mpps Up to 2 Bpps
DRAM 16 G 16 G
Flash 16 G 16 G
Dimensions (H x W x D) 1.73 x 17.5 x 21.52 in 1.73 x 17.5 x 21.2 in
Rack units (RU) 1 RU 1RU

C9500-32C-A Specification

C9500-32C-A Specification
Performance specification
Switching capacity Up to 6.4 Tbps
Forwarding rate Up to 2 Bpps
Total number of MAC addresses Up to 82,000
Total number of IPv4 routes (Address Resolution Protocol [ARP] plus learned routes)

Up to 212,000 indirect + direct

Up to 90,000 host/ARP
Total number of IPv6 routes

Up to 212,000 indirect + direct

Up to 90,000 host
QoS ACL scale Up to 16000
Security ACL scale Up to 27000
FNF entries Up to 98,000
DRAM 16 GB
Flash 16 GB
VLAN IDs 4000
Total Switched Virtual Interfaces (SVIs) 4000
Jumbo frame 9216 bytes
Power supply specification
Power Supply Selection C9K-PWR-1600WAC-R or C9K-PWR-1600WDC-R
Dimensions, physical specification, weight, and MTBF
Dimensions (H x W x D) 1.73 x 17.5 x 21.2 in
Rack units (RU) 1 RU
Input voltage 90 to 264 VAC
Operating temperature 32° to 104°F (0° to 40°C)
Storage temperature -4° to 149°F (-20° to 65°C)
Relative humidity operating and nonoperating noncondensing

Ambient (noncondensing) operating: 5% to 90%

Ambient (noncondensing) nonoperating and storage: 5% to 95%
Altitude Operation up to 13,000 feet at 40°C
MTBF (hours) 212,820

C9500-32C-A Cisco Switch Catalyst 9500 32-Port 100G Only Advantage
